| 詳細情報 | |||
| ソース: | 100Wレーザー | CCT: | 10000k |
|---|---|---|---|
| CRI: | 75 | ビーム角度: | 0.8° |
| カラーホイール: | 12+1Open | 虹彩: | cmy |
| 回転したゴボホイール: | 10+1開きます | ゴボホイールを固定しました: | 23+1Open |
| プリム: | 18/36ファセットプリズム + 6線形プリズム | IPグレード: | IP66 |
製品の説明

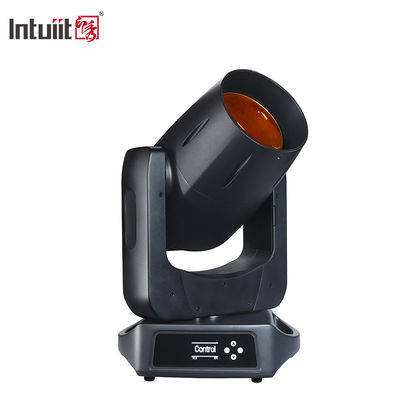

Dasen Imager B100 Moving Head – Redefining Stage Lighting Excellence
Step into the future of stage production with the Dasen Imager B100, where cutting-edge technology meets exceptional performance.
Designed to deliver professional-grade impact in a compact form, this moving head light features:
-
	Advanced Color System – Patented 8-color wheel combined with full CMY mixing unlocks millions of rich, vibrant colors for limitless creative expression.
-
	Extensive Gobo Capabilities – 23 static and 10 rotating gobos, plus one customizable slot, offer virtually endless pattern possibilities for dynamic visual storytelling.
-
	Crystal-Clear Prism Effects – Ultra-bright, multi-faceted prism projections add depth and dimension to captivate any audience.
-
	Robust IP66 Protection – Built to withstand rain, dust, and harsh environments, ensuring reliable operation in any condition.
Ideal for concerts, theater productions, and large-scale live events, the Imager B100 brings studio-level precision and unwavering reliability to every performance.
Technical Data
| Item No. | XY-052P |
| Light Source | 100W Laser |
| CRI | 75 |
| Iris | CMY |

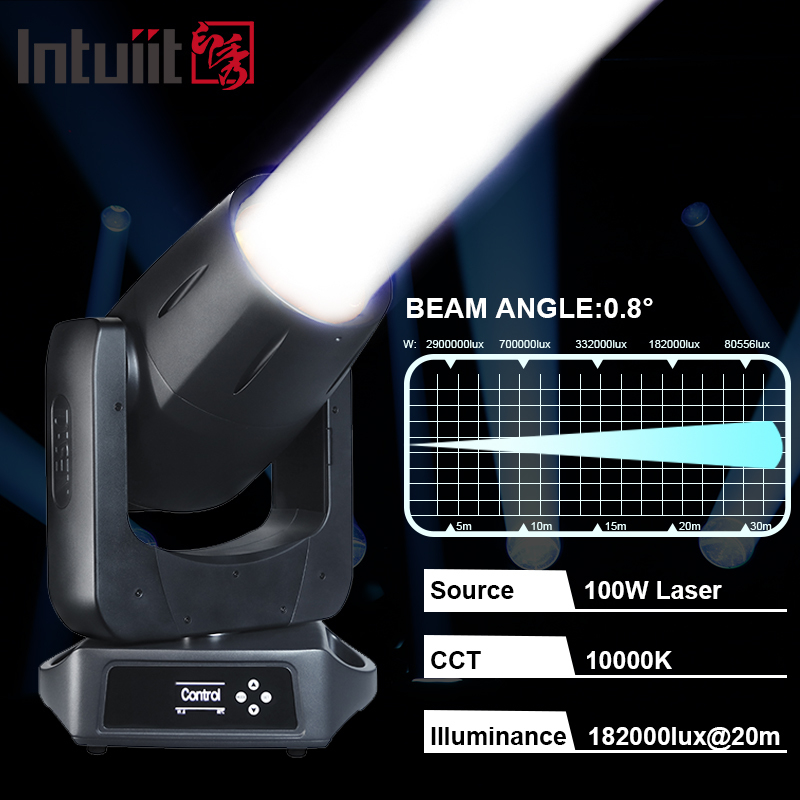

| Beam angle | 0.8Degree |
| Luminous flux | 182000LM@20m |

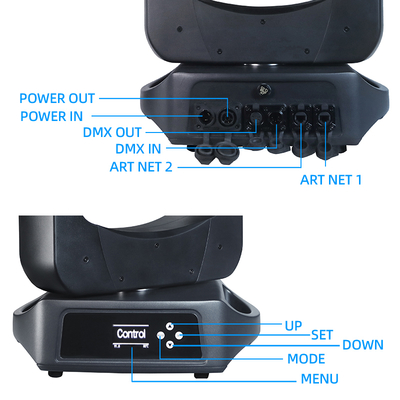

| Control Protocol | Art-Net, sACN,RDM, DMX |
| DMX Channels | 15/26CH |
| IP Grade | IP66 |

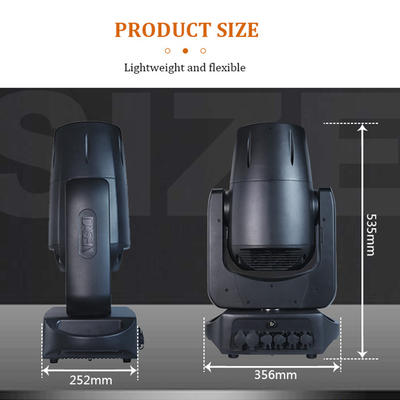

| Product's dimension | 356*246*586MM |
| Net Weight | 22KG |
