詳細情報 |
|||
| LED数量: | 1 RGBWに付き8*15W 4 | ルーメン: | 566lm |
|---|---|---|---|
| 入力電圧: | AC100-240V、50-60Hz | 力: | 72W |
| IP定格: | IP65 | 保証: | 2年 |
| 駆動電流: | 50ma | 調光: | 16ビット |
製品の説明
DC-100P | Battery-Powered LED Stage Light – Professional, Portable & Versatile
Technical Specifications
-
High-Output LEDs: 8 x 15W RGBW 4-in-1 LEDs deliver rich, dynamic colors and brilliant illumination.
-

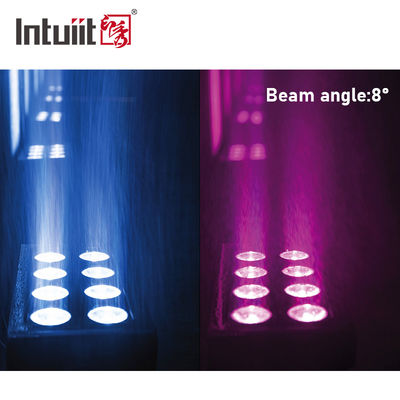

Adjustable Beam Angle:
-
Standard: 4.5° (sharp, focused beam)
-
Optional Diffusers: 8° (medium spread) & 20° (wide flood)
-
-
Precision Dimming: Smooth 0–100% brightness control for flawless scene transitions.
-
Advanced Control Options:
-
Compatible with DMX512 & RDM
-
Bidirectional data communication for advanced system integration
-
-
Built-In Rechargeable Battery: Perfect for locations without easy access to power.
-

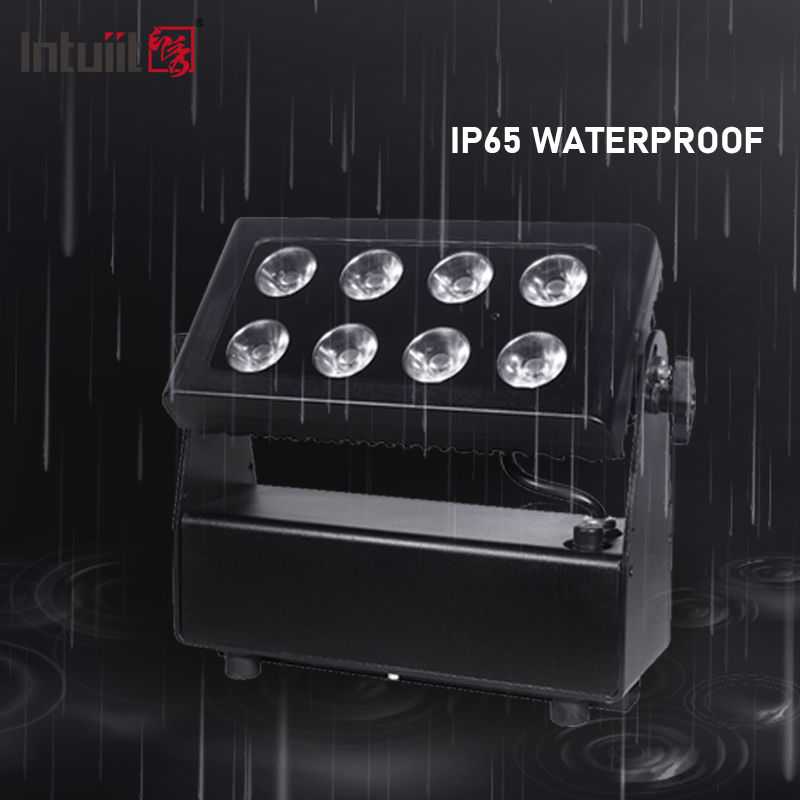

Robust Protection: IP65-rated — fully waterproof and dustproof.
Key Features
-
Pre-Programmed Effects: Auto-run modes deliver professional lighting scenes instantly.
-
Firmware Upgrades: Stay up to date with new features via online firmware updates.
-
Smart Power Management: Extends battery life through intelligent energy optimization.
-
Quick Beam Adjustment: Easily switch between beam angles on the go.
Ideal For:
-
DJs & Live Performances: Create dynamic lighting without being tied to a power source.
-
Weddings & Special Events: Elevate any celebration with stunning, versatile lighting.
-
Mobile Setups & Outdoor Use: Dependable, high-performance lighting — anywhere.
Overview
The DC-100P sets a new standard in portable stage lighting. Combining a high-capacity battery, professional DMX/RDM control, and rugged IP65-rated construction, it’s built for DJs, event producers, and touring crews who demand reliability and flexibility — whether in remote locations or fast-moving setups.
Why Choose the DC-100P?
-
True Portability: Perform anywhere — no outlet needed.
-
Professional Control: Full DMX512 and RDM compatibility.
-
All-Weather Durability: IP65 rating ensures reliable operation indoors or outdoors.
Elevate your lighting with the DC-100P — where professional performance meets ultimate portability.
Specification:
| LED | 8*15W 4in1 RGBW |
| Lumen | 566lm |
| Beam angle | 4.5°,8°,20° |
| Input voltage | AC 100~240V, 50-60Hz |
| Power | 72W |
| Driving current | 50mA |
| Dimming | 0-100% |
| Cooling | Natural heat dissipation |
| Control protocol | DMX512 |
| Function | Auto Run program,Auto kun effect,upgrade online,power management,change angle quickly |
| Dimensions | 369x126x303mm |
| N.W. | 9 Kg |
| Housing material | Die-casting alloy+ABS |
| Housing color | Black |
| Operation Mode | OLED |
| Electrical safety class | I |
| Certificates | ROHS, CE |
| Permitted Ambient | -20℃~45℃ |
| Temperature | |
| IP Grade | IP65 |
| Lux | Distance | F | R | G | B | W |
| 1M | 16120 | 7432 | 17450 | 3993 | 22260 | |
| 2M | 6209 | 2797 | 6778 | 1564 | 8480 | |
| 3M | 3035 | 1364 | 3324 | 762 | 4094 | |
| 4M | 1650 | 730 | 1900 | 430 | 2200 | |
| 5M | 1050 | 500 | 1250 | 280 | 1450 |
