詳細情報 |
|||
| ソース: | 100Wレーザー | CCT: | 10000k |
|---|---|---|---|
| クリ: | 75 | ビーム角度: | 0.8° |
| カラーホイール: | 12+1Open | 虹彩: | cmy |
| 回転したゴボホイール: | 10+1開きます | ゴボホイールを固定しました: | 23+1Open |
| プリム: | 18/36ファセットプリズム + 6線形プリズム | IPグレード: | IP66 |
製品の説明
Dasen Imager B100 Moving Head – Redefining Stage Lighting Excellence
Step into the future of illumination with the Dasen Imager B100, where cutting-edge innovation delivers exceptional performance.
Compact and powerful, this moving head features:
-
Patented 8-Color Wheel + CMY Mixing – Create millions of vivid colors for limitless creative expression.
-
23+1 Fixed & 10+1 Rotating Gobos – Unleash dynamic visuals with endless pattern combinations.
-
Ultra-Bright Prism Effects – Add captivating depth and dimension to any performance.
-

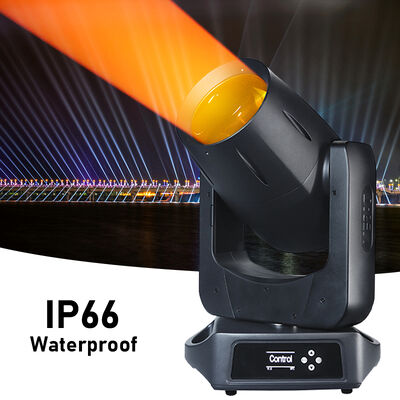

IP66 Weatherproof Protection – Built to withstand rain, dust, and extreme environments without compromise.
Ideal for concerts, theaters, and live events, the Imager B100 brings studio-grade precision and reliability to every stage.
Technical Data
| Item No. | XY-052P |
| Light Source | 100W Laser |
| CRI | 75 |
| Iris | CMY |

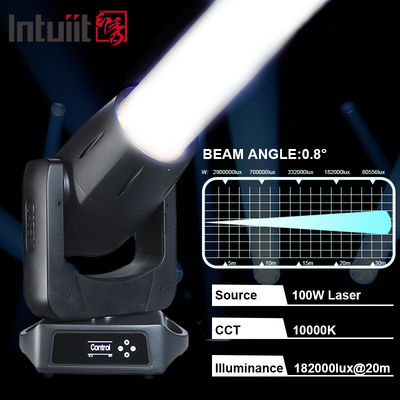

| Beam angle | 0.8Degree |
| Luminous flux | 182000LM@20m |

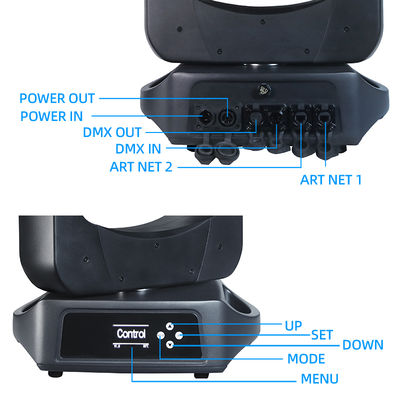

| Control Protocol | Art-Net, sACN,RDM, DMX |
| DMX Channels | 15/26CH |
| IP Grade | IP66 |

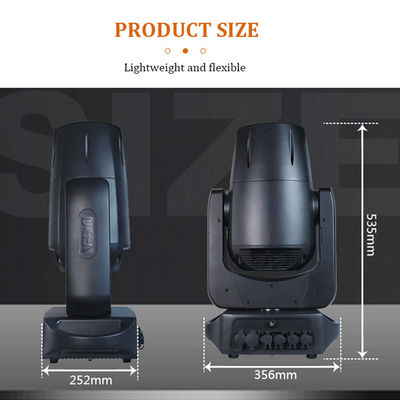

| Product's dimension | 356*246*586MM |
| Net Weight | 22KG |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
