詳細情報 |
|||
| Lそうig htのurce: | RGBW 4 1の60x12W | ルーメン: | 12060lm |
|---|---|---|---|
| ビーム角度: | 20°/30°/40°Optional | 入力電圧: | AC100V-240V |
| 力: | 300W | 駆動電流: | 500mA |
| IPグレード: | IP65 | ||
製品の説明

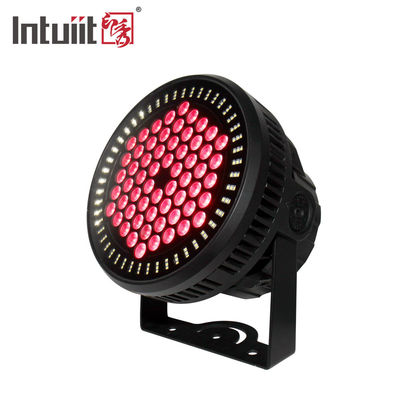

Powerful, Versatile, and Built to Last – MYLED-131
Designed for outdoor architectural and landscape lighting, the MYLED-131 is a high-performance LED par light that combines power with precision. Its rugged, IP65-rated construction ensures long-lasting durability in any weather condition.
At the core of the fixture is an RGBW LED that delivers exceptional brightness and smooth color mixing, allowing you to create vibrant, dynamic lighting effects across your outdoor spaces.
What sets the MYLED-131 apart is the addition of round-configuration strobe SMD lights—offering both wash and strobe effects in one unit. This combination gives you greater creative control to shape diverse atmospheres and visual dynamics.
With a 20° beam angle, the light provides focused, precise illumination—ideal for accentuating architectural details or landscape features. Included barndoors offer further control by shaping the beam and minimizing light spill.
Versatile control options—including master/slave, built-in programs, auto run, and DMX—make it easy to adapt the fixture to any project requirement.
Certified with CE and RoHS, the MYLED-131 is manufactured on a stable, high-quality production line to ensure consistent performance and reliability.
Whether for architectural accents or professional outdoor staging, the MYLED-131 delivers professional-grade performance, weather-ready durability, and unmatched creative flexibility.
Specification
| Product name | 300W Outdoor LED Par | ||||||
| Item number | MYLED-131 | ||||||
| physical property | Product Measurement | 310mm*271mm*200mm | |||||
| Inner Packing Size | 375*345*290mm | ||||||
| Outer Packing Size | 710*395*315mm | ||||||
| Quantity | 2pcs/ctn | ||||||
| N.W. | 7.98Kg | ||||||
| G.W. | 9.85Kg | ||||||
| Housing Material | Die casting Aluminium | ||||||
| Color | Black | ||||||
| Device Linking | Power In/Out,DMX In/Out | ||||||
| Electric Parameters | Input Voltage Range | AC100-240V,60/50HZ | |||||
| Max Power | 380W/AC110V | 360W/240V | |||||
| Power Factor | 0.998/AC110V | 0.981/A240V | |||||
| Input Current | 3.7A/AC110V | 1.5A/AC240V | |||||
| Power Linking | 3pcs/AC110V | 8pcs/AC240V | |||||
| Optical System | LED Light Source | RGBW | |||||
| Drive Current | 500MA | ||||||
| Dimming | 0-100% | ||||||
| Strobe | 0-20Hz | ||||||
| Light Angle | Beam angle | 20° | Spot angle | 45° | |||
| Max Lumen | 9602 lm | ||||||
| Control | Data Protocol | DMX512 | |||||
| DMX Channel | 7/11/18/28/32/39CH | ||||||
| Safety | IP Rate | IP65 | |||||
| Working Tempreture | -20°～40° | ||||||
| Lux | Distance | F | R | G | B | W1 | W1+W2 |
| 1M | 60000 | 15300 | 24200 | 4152 | 25100 | 25700 | |
| 2M | 15300 | 4100 | 7400 | 1220 | 7010 | 7430 | |
| 3M | 6900 | 1830 | 3100 | 555 | 3130 | 3160 | |
| 4M | 3680 | 960 | 1730 | 320 | 1780 | 1880 | |
| 5M | 2480 | 691 | 1148 | 216 | 1190 | 1240 | |

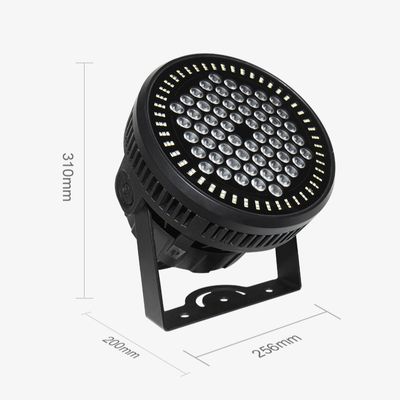

Dimension sheet:
Installation:
Effect Images:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
