詳細情報 |
|||
| 製品名: | 外壁洗浄器 ピクセル制御 | ハウジングの色: | 黒 |
|---|---|---|---|
| 力: | 140W | 入力電圧: | AC100～240V、60Hz/50Hz |
| IPグレード: | IP65 | 保証: | 1年 |
| CCT: | 3000K | ビーム角度: | 20°、20*40° |
| チャネル: | 4/6/8/56CH | 明るい色: | RGBW |
| 材料: | アルミニウム合金 | サイズ: | 978*141*179mm |
| 電圧: | AC110-240V | 重さ: | 6.2kg |
| ハイライト: | LED wall washer bar RGBW outdoor,DMX stage wash light IP65,linear strip wedding back light |
||
製品の説明

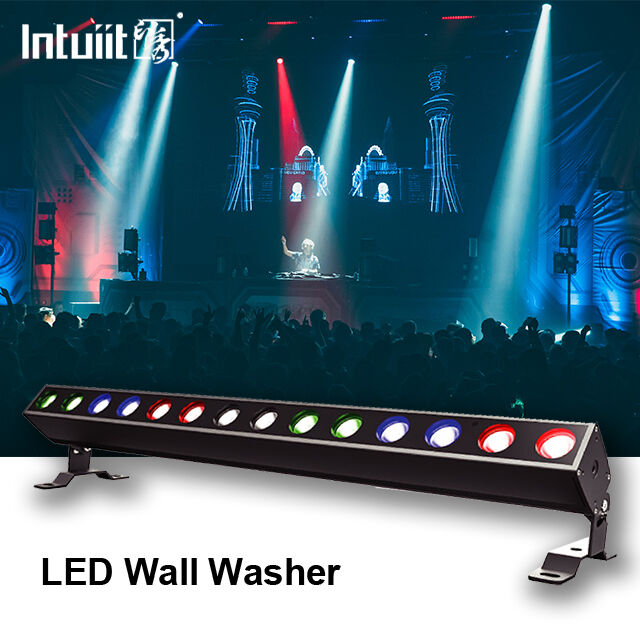

CT-002P – IP65 Outdoor LED Stage Light Bar | Pixel-Perfect Power, All-Weather Tough
Rugged durability meets cinematic color control. Built for the outdoors, designed to impress.
The Hook – Built for the Elements, Engineered for Impact
The CT-002P isn't just another light bar. It's your all-weather creative partner. With a rugged, die-cast aluminum housing and IP65 rating, it stands up to rain, dust, and the toughest outdoor conditions. Festivals. Architectural accents. Rooftop gigs. This bar delivers brilliant, reliable illumination—show after show.
The Heart of the Show – Brilliant, Versatile, Reliable
Vivid, Seamless Color: 14 powerful 10W RGBW 4-in-1 LEDs deliver rich saturation and flawless mixing. From soft pastel washes to high-impact strobes—you're in control.
Tailored Beams: Switch between 20° (spot) or 40° (wash) beam angles. One fixture, two distinct looks. Tight focus or wide coverage—you choose.
The Game-Changer – Pixel‑Level Creativity
Unlock next‑level lighting design with individual pixel control. Run chases, build complex patterns, or sync colors across the bar with pinpoint accuracy. The CT-002P turns a simple light bar into a dynamic visual canvas—perfect for shows that demand attention.
User Experience – Intuitive Control, Live‑Show Ready

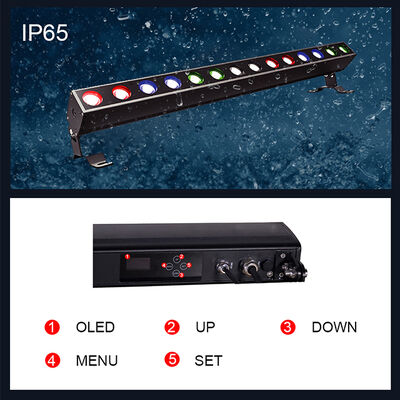

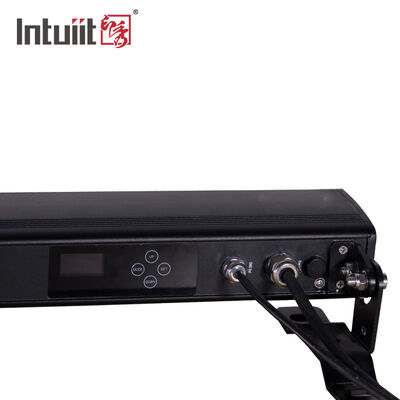

No more confusing setups. The bright OLED display and responsive 4‑touch‑button panel make menu navigation, DMX adjustments, and program selection fast and effortless—even under pressure.
Professional Polish – Smooth, Flicker‑Free Performance
16‑bit dimming delivers buttery‑smooth fades and imperceptible intensity changes. Whether you need a subtle glow or full‑power blast, transitions are seamless every time.
Technical Data
| Item No. | CT-002P |
| Light Source | 14Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 85W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 20Degree, 20*40D |
| Luminous flux | 1087lm |
| Control Protocal | DMX512, RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Certificate | CE&RoHS |
| Product's dimension | 978*141*179MM |
| Net Weight | 6.2kg |
Appearance
Light Distribution Data

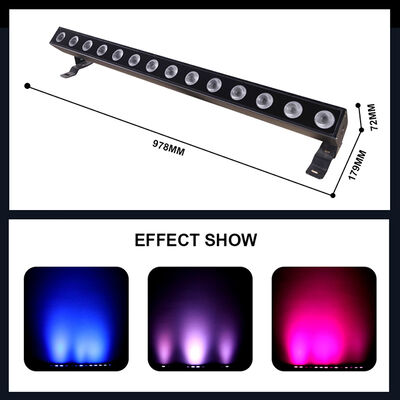

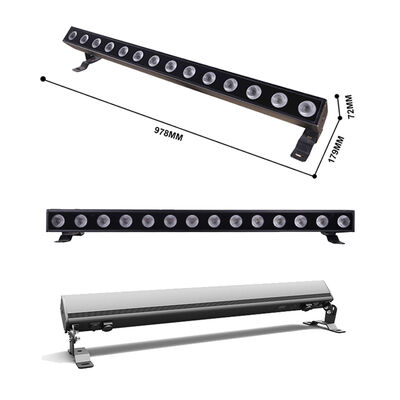

Product's Dimension
Installation Diagram
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
