詳細情報 |
|||
| タイプ: | LEDバーライト | 最大。力: | 82W |
|---|---|---|---|
| 入力電圧: | AC100～240V、60Hz/50Hz | 光源: | RGBW 4-in-1 LED |
| IPグレード: | IP65 | 保証: | 1年 |
| DMXチャンネル: | 4/6/9CH | LED: | 16 |
| 北西: | 6.2kg | GW: | 6.5kg |
製品の説明

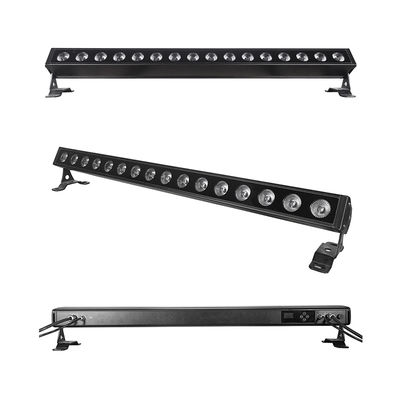

Illuminate Beyond Limits: The TPL-128 Professional Light Bar
In the world of high-end architectural and event design, light is more than illumination—it’s the medium that defines space and mood. The TPL-128 LED Light Bar is engineered for the visionary professionals who understand this nuance. It transcends standard outdoor lighting by offering a fusion of broadcast-quality visuals and the rugged resilience required for the continent's most demanding environments.
Here is how the TPL-128 delivers an unmatched return on investment for your projects:
-
Certified for the Elements: With an IP65 rating and a heavy-duty die-cast aluminum chassis, this unit is built to withstand European weather extremes—from coastal humidity to alpine frost—without compromising performance.
-
Studio-Grade Colour Rendering: The advanced 4-in-1 RGBW LEDs produce vibrant, seamless colour mixing. Achieve the perfect ambience, from crisp, functional whites to saturated dynamic effects that elevate the aesthetic of any structure or stage.
-
Optical Precision & Control: Adapt instantly to any setting with switchable 20° and 40° beam angles. This flexibility allows you to execute both sharp architectural accents and expansive wash lighting with a single, versatile fixture.
-
On-Device Intelligence: The integrated OLED interface provides real-time feedback and tactile control, allowing technicians to make quick, precise adjustments directly on-site without the need for complex external controllers.
-
Flicker-Free Cinematic Quality: Leveraging 16-bit high-resolution dimming, the TPL-128 ensures buttery-smooth fades and transitions, making it ideal for broadcast and live event applications where visual perfection is non-negotiable.
The Pinnacle of Adaptability

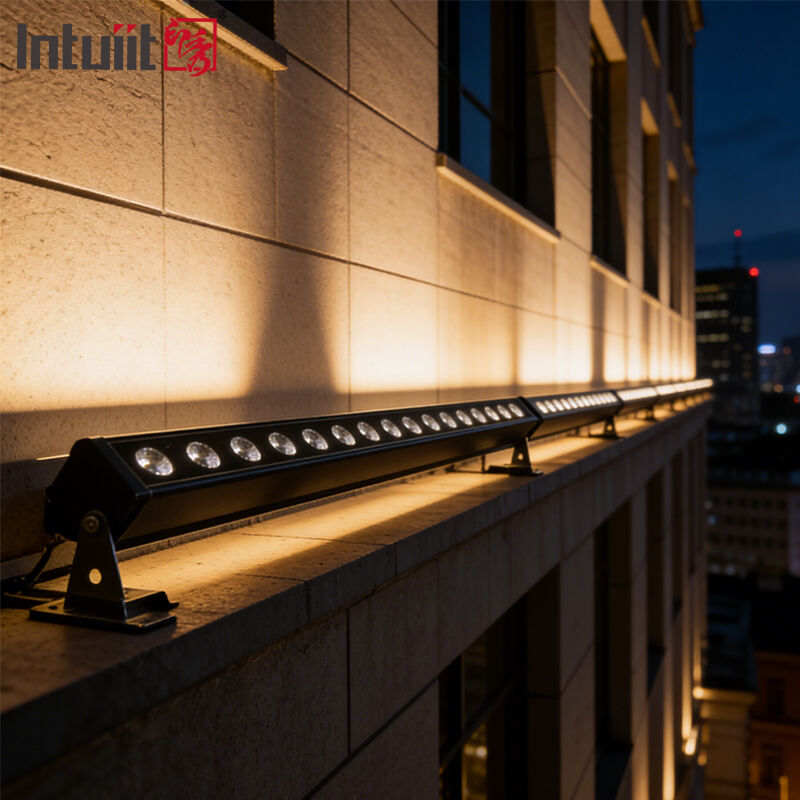

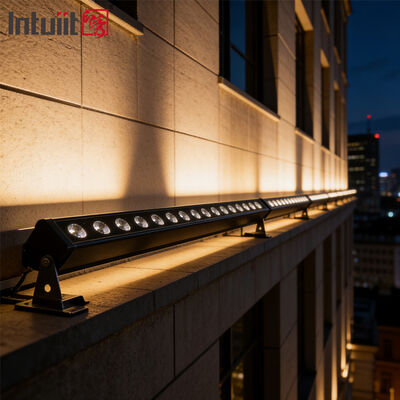

The TPL-128 represents the intersection where innovative photonics meet industrial design. It is the go-to solution for lighting designers and technical directors who demand fixtures that are as technically advanced as they are visually discreet. Whether it’s grazing the texture of a modern concrete facade, washing a historic landmark, or providing the backbone for a festival's lighting rig, the TPL-128 delivers consistent, brilliant performance project after project.
Upgrade your professional arsenal.
Discover the precision of the TPL-128 and bring your most ambitious creative visions to life.
.
1. Product Description
| Brand:Guangzhou Dasen Lighting Corporation | Type : TPL-128 |
| Light source: LED | Wire:rubber cable |
| Application : STAGE, OUTDOOR INDOOR | Housing color:Black |
| Type: | TPL-128 | ||
| Rated power: | 82W | Rated Voltage: | AC100-240V/60-50HZ |
| Control Mode: | DMX512 | Color: | RGBW |
| Beam Angle : | 40°,20°optional | Cooling type: | Natural convection cooling |
| Product Size : | 1008*145*145mm | IP Rate: | IP65 |
| N.W: | 6.2KG | Channel: | 4,6,9CH |
| LED : | Prolight RGBW 5W | Permitted Ambient Temperatur: | -20~+45 |
Optical Parameter

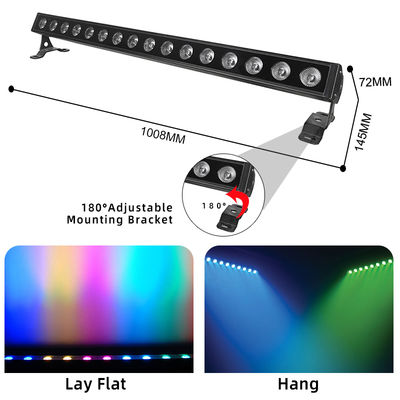

Product's Dimension
Installation Diagram
Effect Display
