詳細情報 |
|||
| タイプ: | LEDの建築照明 | 光源: | 導かれた |
|---|---|---|---|
| 入力電圧: | DC24V | ランプ電力: | 36W |
| IP定格: | IP65 | 保証: | 2年 |
製品の説明
1. Specification
| Item Number | IXQ17C31(1M) IXQ17C39(0.5M) IXQ17C40(0.3M) |
IXQ17C16(1M) IXQ17C34(0.5M) IXQ17C33(0.3M) |
IXQ17C17(1M) IXQ17C35(0.5M) IXQ17C38(0.3M) |
IXQ17C20(1M) IXQ17C36(0.5M) IXQ17C29(0.3M) |
IXQ17C47(1M) |
| LED Qty | 24pcs(1M) / 12pcs(0.5M) / 6pcs(0.3M) | 16pcs(1M) | |||
| Beam Angle | 20°/30°/40°/20*40°Optional | ||||
| Spot Angle | 40°/50°/75°/45*75°Optional | ||||
| Lumen | 2260lm / 1116lm / 710lm | 1050lm / 650lm / 318lm | 1240lm / 610lm / 430lm | 1240lm | |
| CRI | Ra≥70 | / | / | / | |
| Color Tempreture | 2700∽6000K Optional | RGB | RGBW(W:3000 / 4000 / 6000K Optional) | ||
| Product Measurement | 1000*47*63MM(1M) / 510*47*63MM(0.5M) / 300*47*63MM(0.3M) | ||||
| N.W. | 1.9kg(1M) / 1.2kg(0.5M) / 0.8kg(0.3M) | ||||
| Input Voltage Range | DC24V | ||||
| Watts | 36W(1M) / 18W(0.5M) / 9W(0.3M) | ||||
| Power Factor | ＞0.9 | ||||
| Housing Material | Tensile Aluminum + die-cast aluminium | ||||
| Color | Matt black / Grey | ||||
| Cooling | Natural convection cooling | ||||
| Control Protocol | ON/OFF | DMX512 | DMX512 | DMX512 | DMX512-RDM |
| Segmented Control | / | 4Section(1M)/2 Section(0.5M)/1Section(0.3M) | 4 Section(1M) | ||
| Channel | / | 4 / 6 / 7 / 16 CH | |||
| Power /Installation | Independent | ||||
| Conection | 2pin rubber cable:input/output | black rubber cable 5 Pin In & Out | |||
| Power Linking | 5pcs(1m) / 8pcs(0.5m) / 12pcs(0.3m) | ||||
| DMX Linking | / | 32pcs(1M) / 64pcs(0.5M) / 128pcs(0.3M) | |||
| Certification | CE,RoHS | ||||
| IP Grade | IP65 | ||||
Product optic

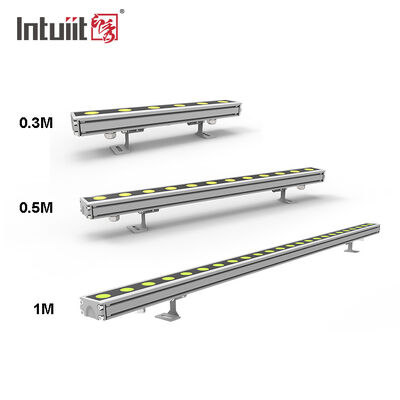

Product size
Product installation:

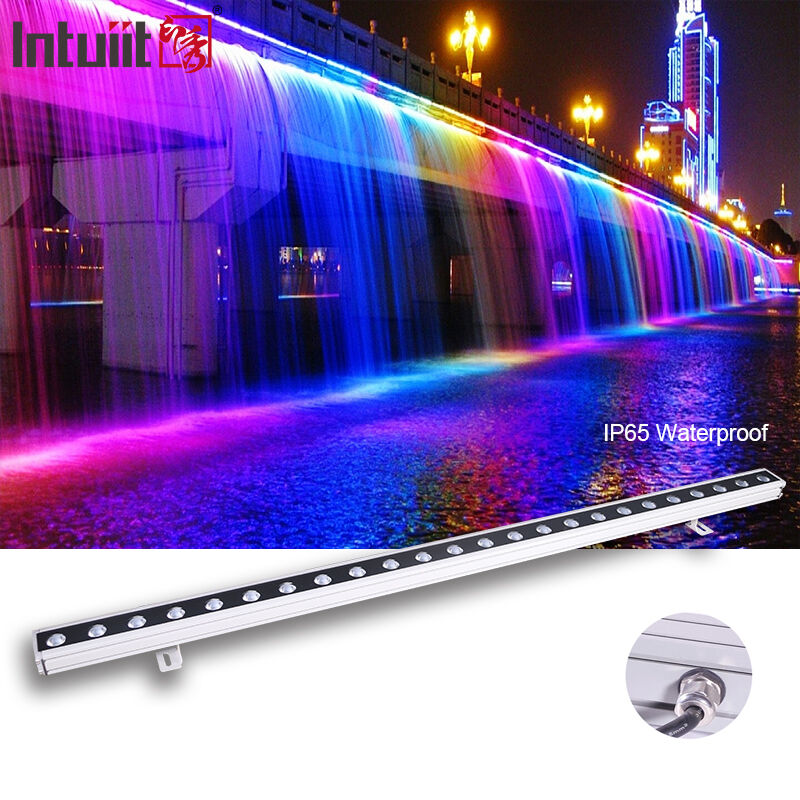

2. Effect show
